    Panoramic M10

    Panoramic mixer cold beverage dispenser

    Counter top cold beverage dispenser for cooling and dispensing natural fruit juices, ayran and all sorts of cold beverages

    • Counter top cold beverage dispenser; specially equiped with slow agitation system, for cooling and dispensing natural juices with particles, as well as ayran, shalgam, cold coffee, cold tea, milk and all similar cold drinks.
      • Beverages cool faster and equally until the last drop thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
      • Practical tap system allows easy dispensing of the beverage with single hand. Large diameter tap hose alows constant fluidity and can easily be disassembled and cleansed.
      • It eliminates the risk of leakage to the engine compartment thanks to the magnetic twisted pallet system, hence motor is fully protected.
      • It provides a homogeneous mix thanks to the magnetic and twisted pallet system, this allows the beverage to cool faster.
      • In order to achieve perfect cleaning and hygiene; all parts which are in contact with the beverage can be easily accessed and quickly cleansed.
      • Polycarbonat bowl is vandal-proof and food grade. It is the right choice for small and mid size food-service outlets.
      • Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.
      • Mixer Models provide suitable solutions for particulate beverages.
      • Beverages cool equally and faster until the last drop, thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
      • The desired temperature level is set manually, the thermostat keeps this level constant.
      • Polycarbonate bowl is vandal-proof and food grade.

        Click here to watch the product video.

      M10.AY (YELLOW) M10.AY (YELLOW)
       M10.AB (BLACK) M10.AB (BLACK)
      M10.AI (INOX) M10.AI (INOX)

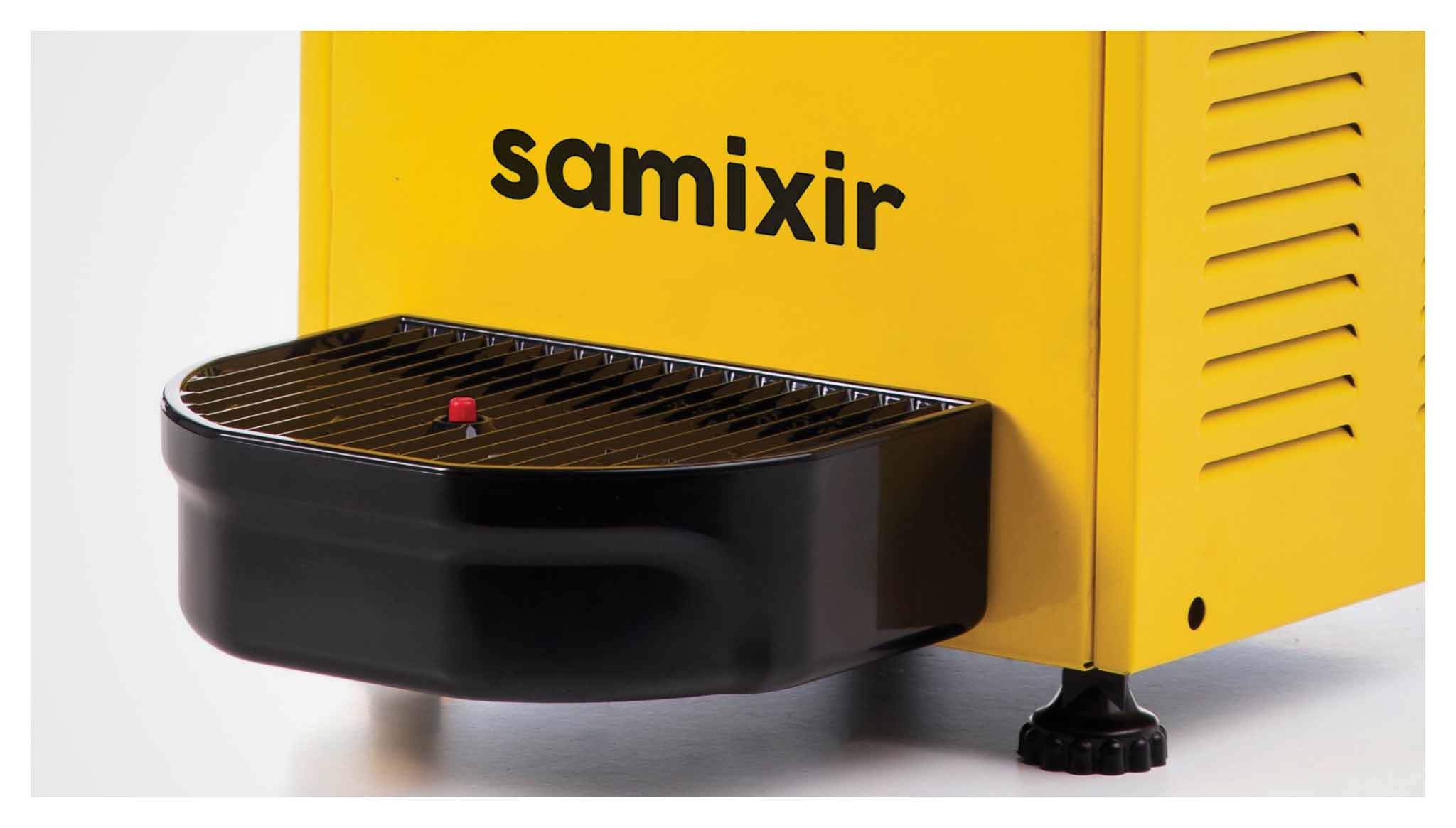

      Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

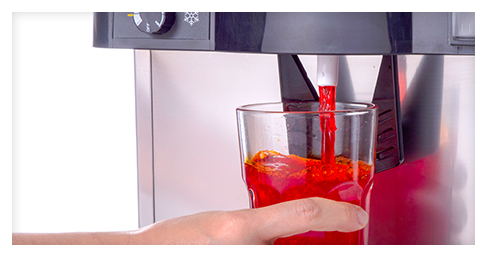

      Practical tap system allows easy dispensing of the beverage with single hand.

      Technical Specifications
      Bowl capacity
      10 Liter
      Weights & Dimensions
      Machine
      Package
      Weight
      16,4 kg
      18,4 kg
      Length
      250 mm
      300 mm
      Depth
      390 mm*
      335 mm
      Height
      700 mm
      720 mm
      * includes drip tray
      Current
      1,1 A
      Cooling Gas
      R134A / R290
      Temperature Range
      +3 °C — +10 °C
      Energy Consumption
      1,8 kWh/24h
      Power
      160 W
      Cooling Power
      350 W
      Supply Voltage
      220-240 V 50 Hz
      Optional Voltage
      208-220 V 60 Hz
      Optional Voltage
      115 V 60 Hz
