    Panoramic M22

    22 L panoramic mixer cold beverage dispenser

    Counter top cold beverage dispenser for cooling and dispensing natural fruit juices, ayran and all sorts of cold beverages

    • Counter top cold beverage dispenser; specially equiped with slow agitation system, for cooling and dispensing natural juices with particles, as well as ayran, shalgam, cold coffee, cold tea, milk and all similar cold drinks.
      • Beverages cool faster and equally until the last drop thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
      • Practical tap system allows easy dispensing of the beverage with single hand. Large diameter tap hose alows constant fluidity and can easily be disassembled and cleansed.
      • It eliminates the risk of leakage to the engine compartment thanks to the magnetic twisted pallet system, hence motor is fully protected.
      • It provides a homogeneous mix thanks to the magnetic and twisted pallet system, this allows the beverage to cool faster.
      • In order to achieve perfect cleaning and hygiene; all parts which are in contact with the beverage can be easily accessed and quickly cleansed.
      • Polycarbonat bowl is vandal-proof and food grade. It is the right choice for small and mid size food-service outlets.
      • Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.
      • Mixer Models provide suitable solutions for particulate beverages.
      • Beverages cool equally and faster until the last drop, thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
      • Polycarbonat bowl is vandal-proof and food grade. It is the right choice for small and mid size food-service outlets.

        Click here to watch the product video.

      Digital Models

      M22.DI (INOX) M22.DI (INOX)
      M22.DB (BLACK) M22.DB (BLACK)
      M22.DY (YELLOW) M22.DY (YELLOW)

      Manual Models

      M22.AI (INOX) M22.AI (INOX)
      M22.AB (BLACK) M22.AB (BLACK)
      M22.AY (YELLOW) M22.AY (YELLOW)

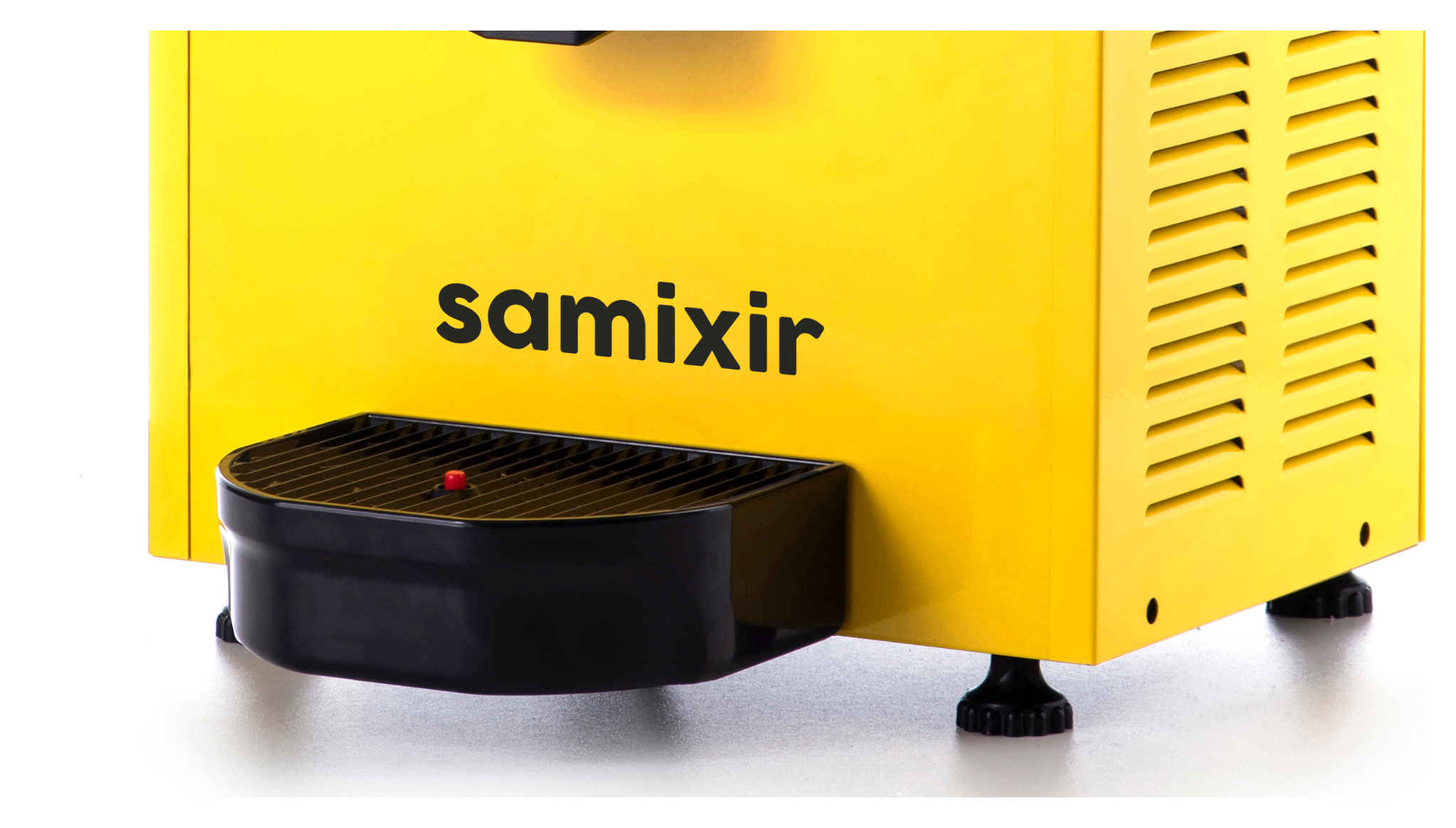

      Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

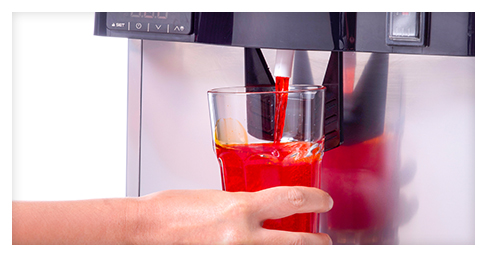

      Practical tap system allows easy dispensing of the beverage with single hand.

      Technical Specifications
      Bowl Capacity
      22 Liter
      Weights & Dimensions
      Machine
      Package
      Weight
      20 kg
      21,6 kg
      Width
      350 mm
      400 mm
      Depth
      405 mm*
      430 mm
      Height
      755 mm
      795 mm
      * includes drip tray
      Current
      1,4 A
      Cooling Gas
      R134A / R290
      Temperature Range
      +3 °C — +10 °C
      Energy Consumption
      2,8 kWh/24h
      Power
      250 W
      Cooling Power
      500 W
      Supply Voltage
      220-240 V 50 Hz
      Optional Voltage
      208-220 V 60 Hz
      Optional Voltage
      115 V 60 Hz
