    Panoramic 10 Twin

    Panoramic mixer cold beverage dispenser

    Counter top cold beverage dispenser for cooling and dispensing natural fruit juices, ayran and all sorts of cold beverages

    • Counter top cold beverage dispenser; specially equiped with slow agitation system, for cooling and dispensing natural juices with particles, as well as ayran, shalgam, cold coffee, cold tea, milk and all similar cold drinks.
    • Beverages cool faster and equally until the last drop thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
    • Practical tap system allows easy dispensing of the beverage with single hand. Large diameter tap hose alows constant fluidity and can easily be disassembled and cleansed.
    • It eliminates the risk of leakage to the engine compartment thanks to the magnetic twisted pallet system, hence motor is fully protected.
    • It provides a homogeneous mix thanks to the magnetic and twisted pallet system, this allows the beverage to cool faster.
    • In order to achieve perfect cleaning and hygiene; all parts which are in contact with the beverage can be easily accessed and quickly cleansed.
    • Polycarbonat bowl is vandal-proof and food grade.
    • One single body and double bowls make this machine suitable for food outlets wishing to offer multiple and various beverages.
    • Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.
    • Mixer Models provide suitable solutionsfor particulate beverages.
    • Beverages cool equally and faster until the last drop, thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
    • The desired temperature level is set manually, the thermostat keeps this level constant.
    • One single body and triple bowls make this machine suitable for food outlets wishing to offer multiple and various beverages. Polycarbonate bowl is vandal-proof and food grade.


      Click here to watch the product video.

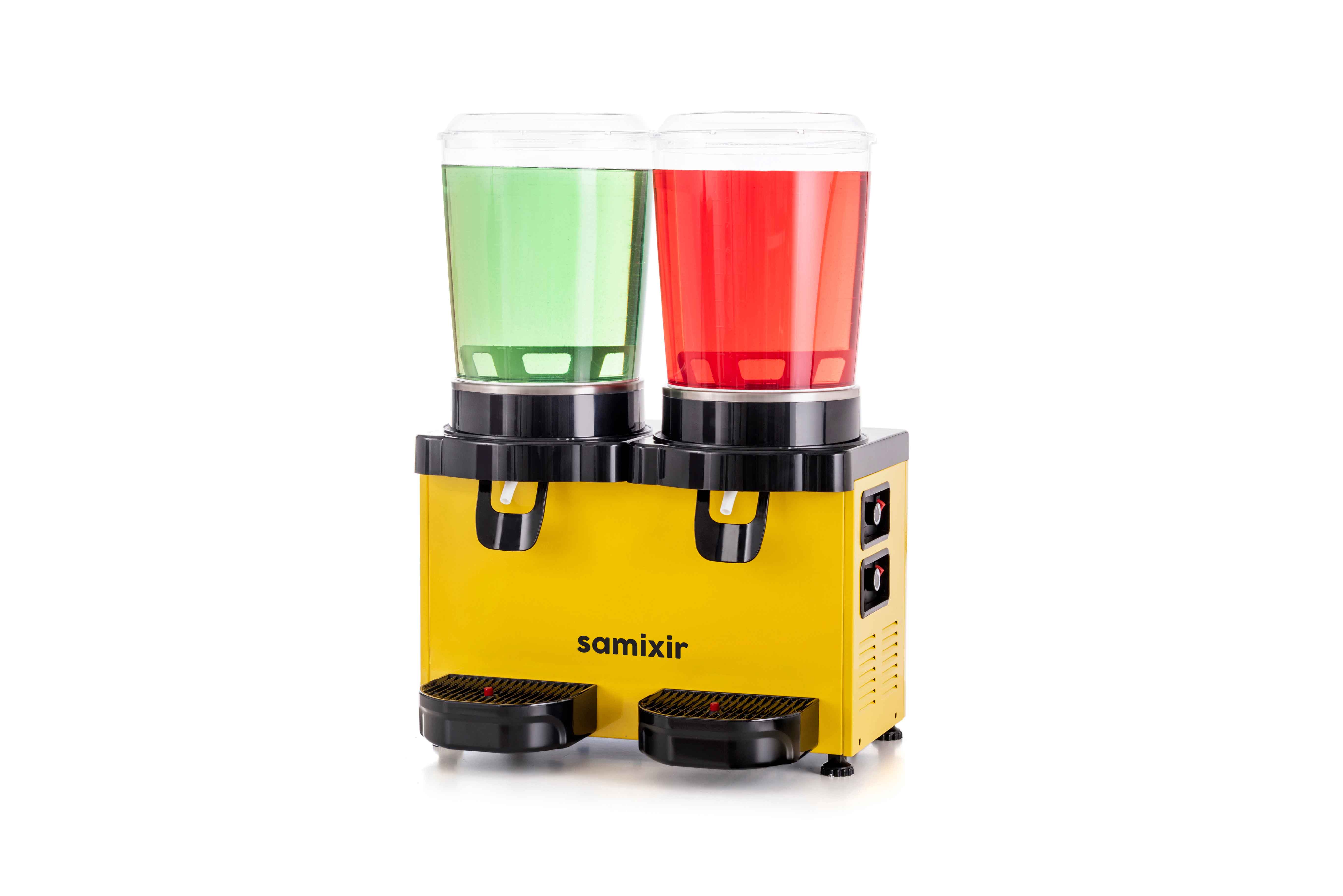

    MM20.AY (YELLOW) MM20.AY (YELLOW)

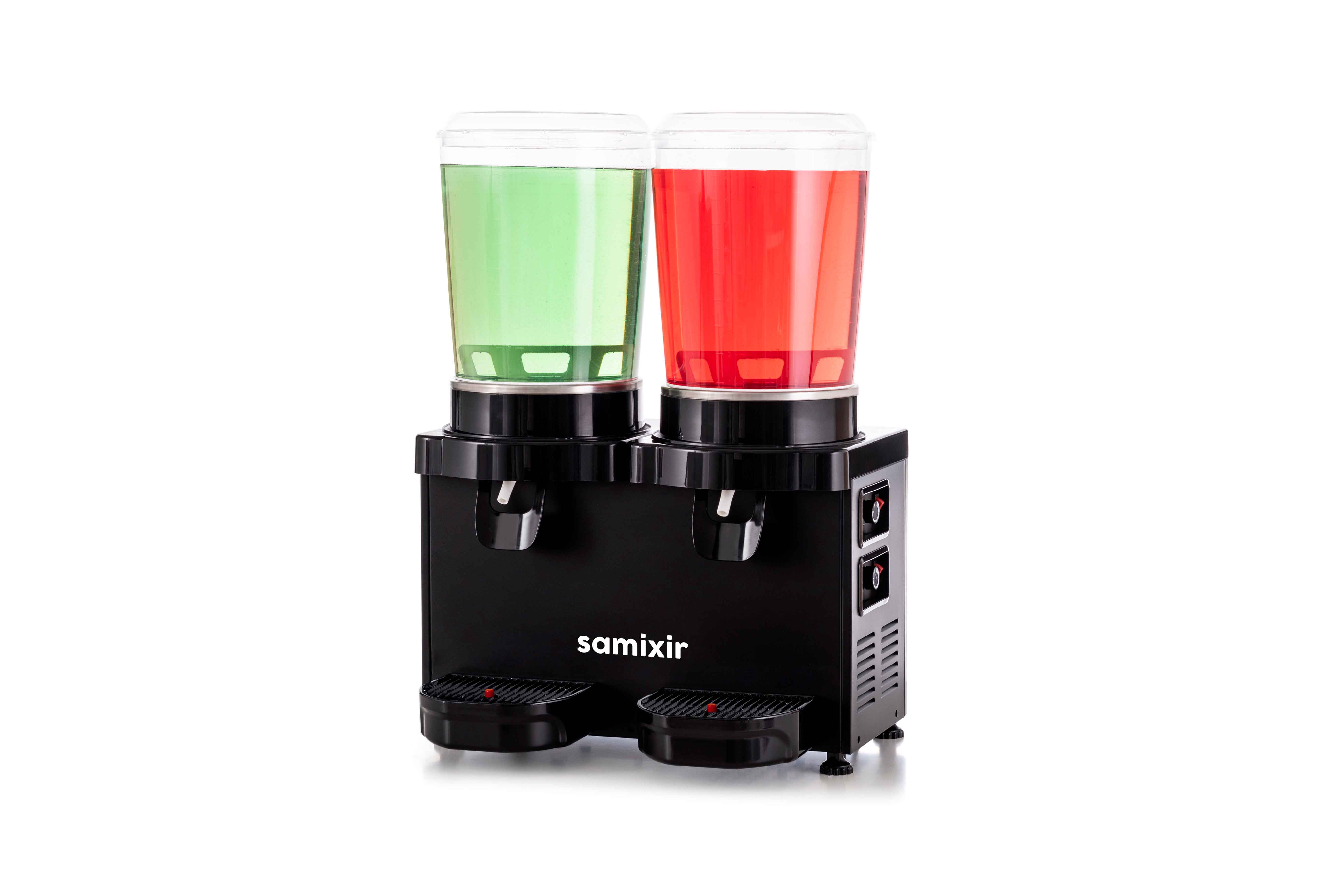

    MM20.AB (BLACK) MM20.AB (BLACK)

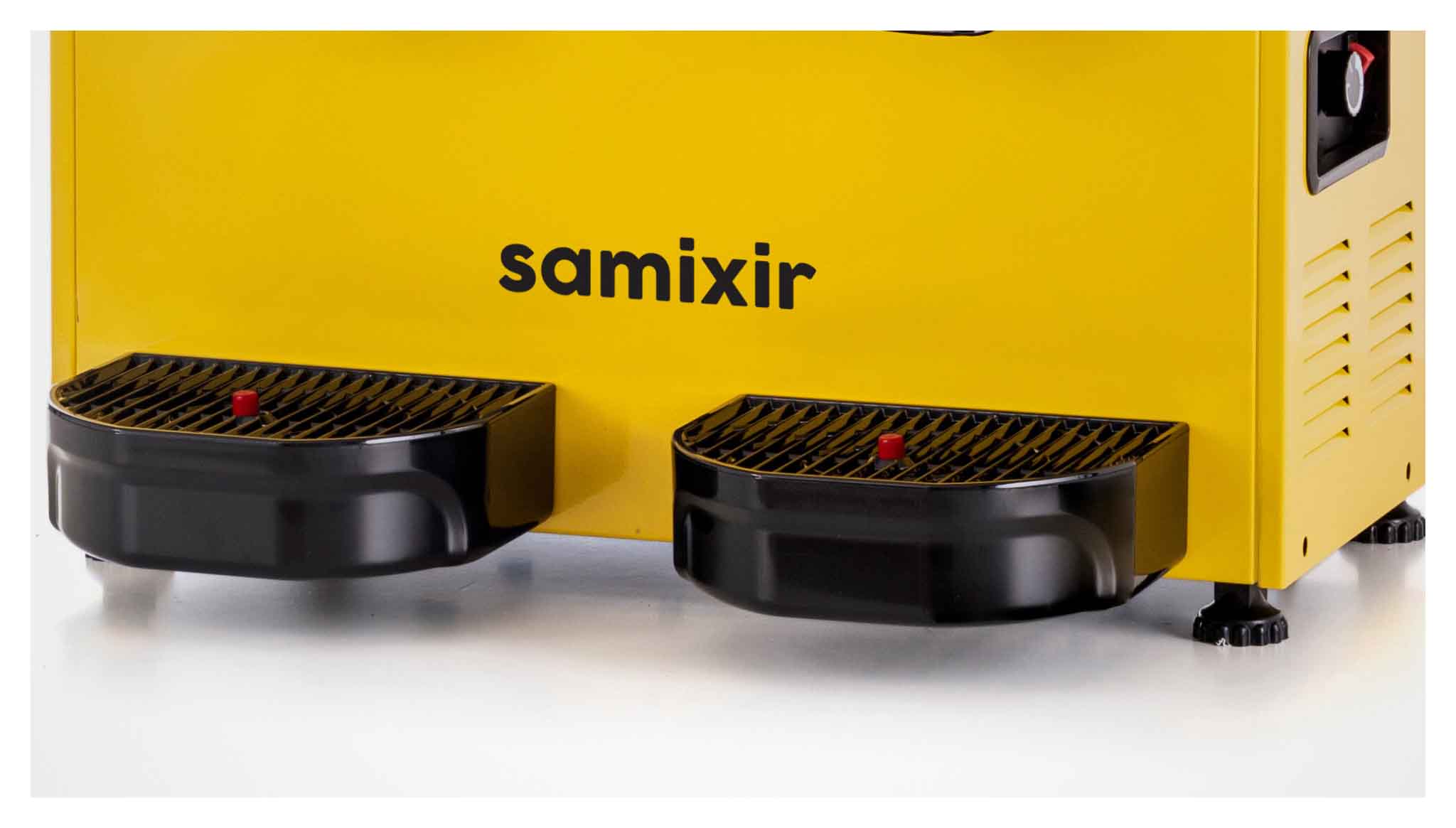

    Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

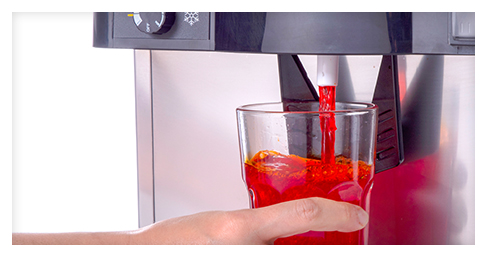

    Practical tap system allows easy dispensing of the beverage with single hand.

    Technical Specifications
    Bowl Capacity
    10L + 10L
    Weights & Dimensions
    Machine
    Package
    Weight
    23 kg
    25,8 kg
    Width
    500 mm
    535 mm
    Depth
    390 mm*
    355 mm
    Height
    700 mm
    720 mm
    * includes drip tray
    Current
    1,3 A
    Cooling Gas
    R134A / R290
    Temperature Range
    +3 °C — +10 °C
    Energy Consumption
    3,8 kWh/24h
    Power
    250 W
    Cooling Power
    500 W
    Supply Voltage
    220-240 V 50 Hz
    Optional Voltage
    208-220 V 60 Hz
    Optional Voltage
    115 V 60 Hz
