    Panoramic 10 Triple

    10 L+10 L+10 L panoramic mixer cold beverage dispenser

    Counter top cold beverage dispenser for cooling and dispensing natural fruit juices, ayran and all sorts of cold beverages

    • Beverages cool faster and evenly until the last drop, thanks to the large cooling base, saving up to 50% energy compared to classical dispensers.
    • The practical tap system allows easy dispensing of the beverage with a single hand.
    • The large diameter tap hose ensures constant fluidity and can easily be disassembled and cleaned.
    • It eliminates the risk of leakage to the engine compartment thanks to the magnetic twisted pallet system, thus fully protecting the motor.
    • It provides a homogeneous mix thanks to the magnetic and twisted pallet system, allowing the beverage to cool faster.
    • For perfect cleaning and hygiene, all parts in contact with the beverage are easily accessible and can be quickly cleaned.
    • The polycarbonate bowl is vandal-proof and food-grade.
    • The single body and triple bowls make this machine suitable for food outlets wishing to offer multiple and varied beverages.
    • The water level indicator incorporated into the drip tray indicates when it’s time to empty the tray.
    • Mixer models provide suitable solutions for particulate beverages.
    • Beverages cool evenly and faster until the last drop, thanks to the large cooling base, saving up to 50% energy compared to classical dispensers.
    • The desired temperature level is set manually, and the thermostat keeps this level constant.

      Click here to watch the product video.

    MMM30.AB (BLACK) MMM30.AB (BLACK)
    MMM30.AY (YELLOW) MMM30.AY (YELLOW)

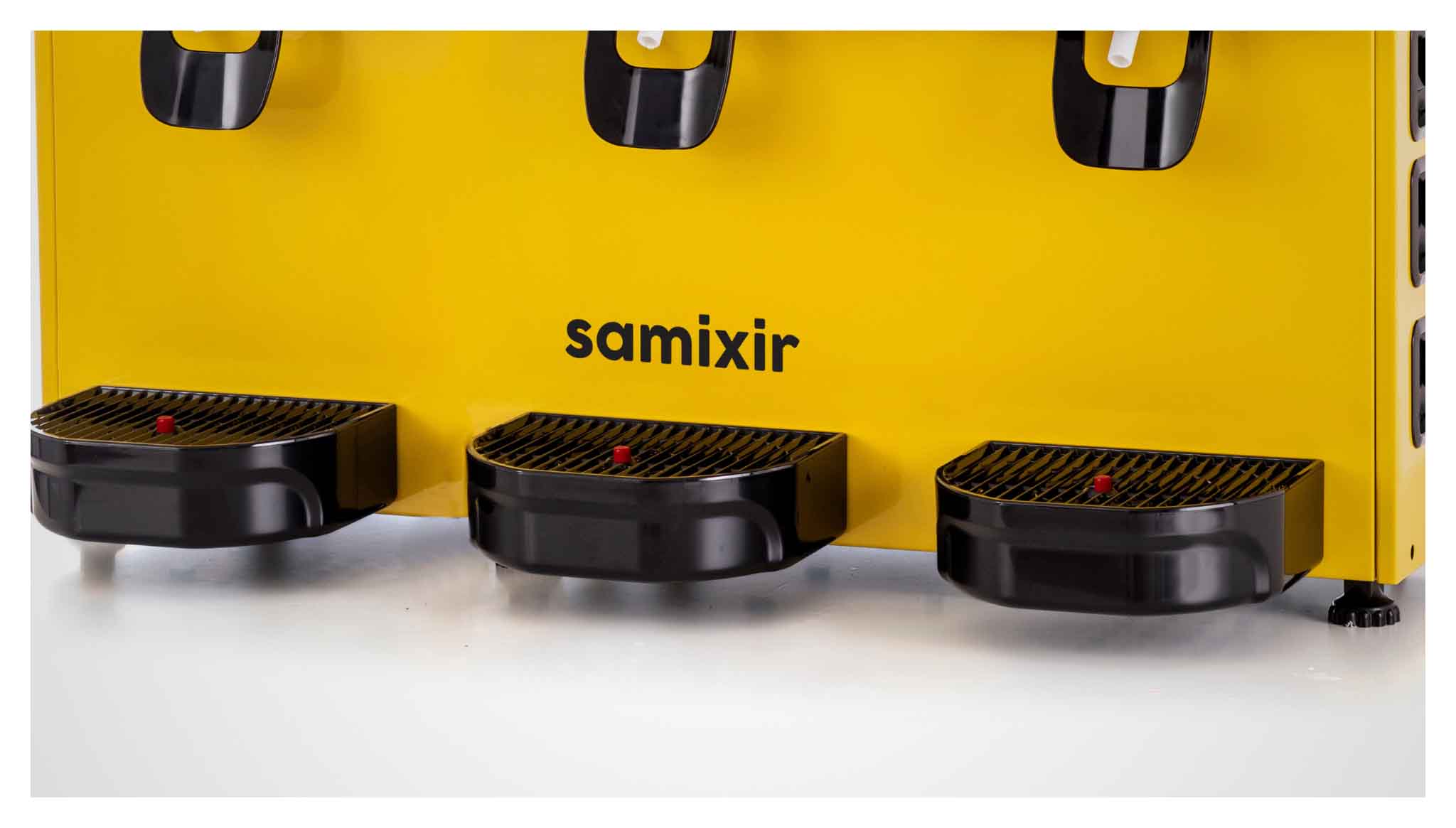

    Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.


    Practical tap system allows easy dispensing of the beverage with single hand.

    Technical Specifications
    Bowl Capacity
    10L + 10L + 10L
    Weights & Dimensions
    Machine
    Package
    Weight
    29 kg
    32,5 kg
    Width
    750 mm
    780 mm
    Depth
    390 mm*
    355 mm
    Height
    700 mm
    720 mm
    * includes drip tray
    Current
    1,53 A
    Cooling Gas
    R134A / R290
    Temperature Range
    +3 °C — +10 °C
    Energy Consumption
    5 kWh/24h
    Power
    300 W
    Cooling Power
    750 W
    Supply Voltage
    220-240 V 50 Hz
    Optional Voltage
    208-220 V 60 Hz
    Optional Voltage
    115 V 60 Hz
