    Panoramic M40

    40 L panoramic mixer cold beverage dispenser

    Counter top cold beverage dispenser for cooling and dispensing natural fruit juices, ayran and all sorts of cold beverages


    • Counter top cold beverage dispenser; specially equiped with slow agitation system, for cooling and dispensing natural juices with particles, as well as ayran, shalgam, cold coffee, cold tea, milk and all similar cold drinks.
    • Beverages cool faster and equally until the last drop thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
    • Practical tap system allows easy dispensing of the beverage with single hand. Large diameter tap hose alows constant fluidity and can easily be disassembled and cleansed.
    • It eliminates the risk of leakage to the engine compartment thanks to the magnetic twisted pallet system, hence motor is fully protected.
    • It provides a homogeneous mix thanks to the magnetic and twisted pallet system, this allows the beverage to cool faster.
    • In order to achieve perfect cleaning and hygiene; all parts which are in contact with the beverage can be easily accessed and quickly cleansed.
    • Polycarbonat bowl is vandal-proof and food grade.
    • It’s compact body makes the machine suitable for food-service outlets with high daily consumption needs.
    • Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

      Click here to watch the product video.

    M40.DI (INOX) M40.DI (INOX)
    M40.DB (BLACK) M40.DB (BLACK)
    M40.DY (YELLOW) M40.DY (YELLOW)

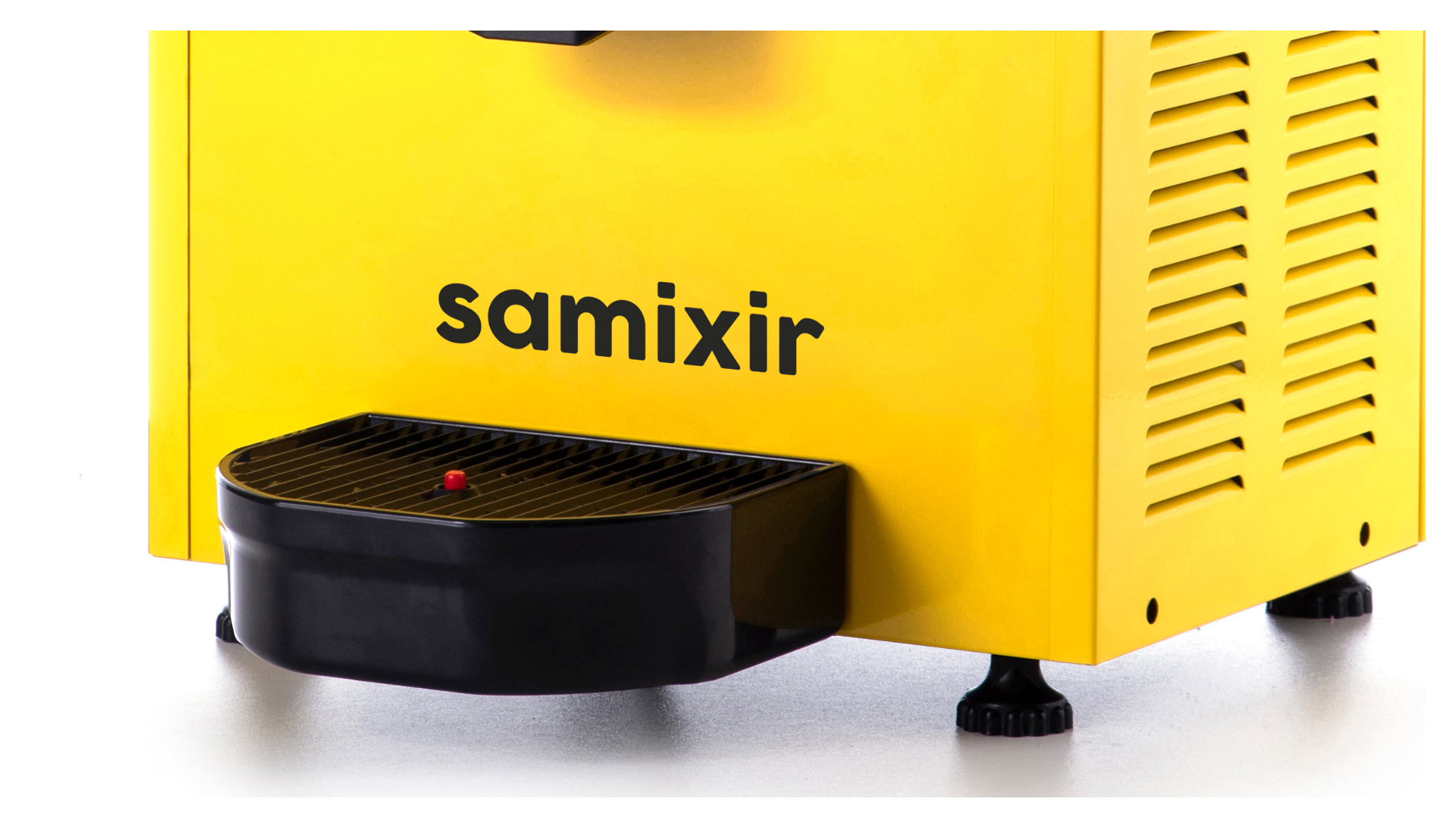

    Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

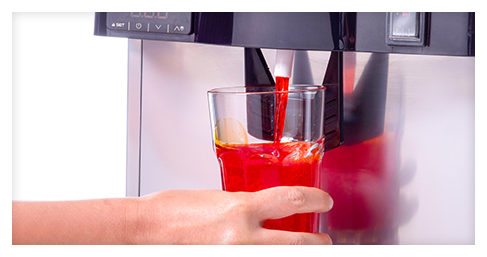

    Practical tap system allows easy dispensing of the beverage with single hand.

    Technical Specifications
    Bowl Capacity
    40 Liter
    Weights & Dimensions
    Machine
    Package
    Weight
    23 kg
    25,1 kg
    Width
    450 mm
    490 mm
    Depth
    450 mm*
    480 mm
    Height
    825 mm
    845 mm
    * includes drip tray
    Current
    1,45 A
    Cooling Gas
    R134A / R290
    Temperature Range
    +3 °C — +10 °C
    Energy Consumption
    4,25 kWh/24h
    Power
    280 W
    Cooling Power
    750 W
    Supply Voltage
    220-240 V 50 Hz
    Optional Voltage
    208-220 V 60 Hz
    Optional Voltage
    115 V 60 Hz
