    Panoramic 22 Twin

    22 L+22 L panoramic twin cold beverage dispenser

    Counter top cold beverage dispenser for cooling and dispensing natural fruit juices, ayran and all sorts of cold beverages

    • Spray; counter top cold beverage dispenser; equiped with magnetic spray system, for cooling and dispensing specially fruit juices without particules and shalgam.
    • Mixer; counter top cold beverage dispenser; specially equiped with slow agitation system, for cooling and dispensing fruit juices with particles, as well as ayran, shalgam, cold coffee, cold tea, milk and all similar cold drinks.
    • Spray; the magnetic spray system in the Spray version and Mixer; the twisted magnetic pallet system in the mixer version; eliminate the risk of leakage to the engine compartment, hence the engine is fully insulated.
    • Beverages cool faster and equally until the last drop thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
    • Spray versions are not suitable for the use of particulate beverages, It offers appetizing look thanks to the spray system.
    • Mixer; It provides a homogeneous mix thanks to the magnetic and twisted pallet system, this allows the beverage to cool faster.
    • Bowls can operate independently both cooling and mixing, multiple containers allow to always have some beverage available at any time.

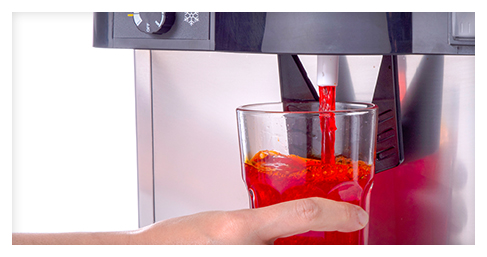

    • Practical tap system allows easy dispensing of the beverage with single hand.
    • Large diameter tap hose alows constant fluidity and can easily be disassembled and cleansed.
    • In order to achieve perfect cleaning and hygiene; all parts which are in contact with the beverage can be easily accessed and quickly cleansed.
    • Polycarbonat bowl is vandal-proof and food grade.
    • The compact body makes the machine suitable for food-service outlets with high daily consumption needs.

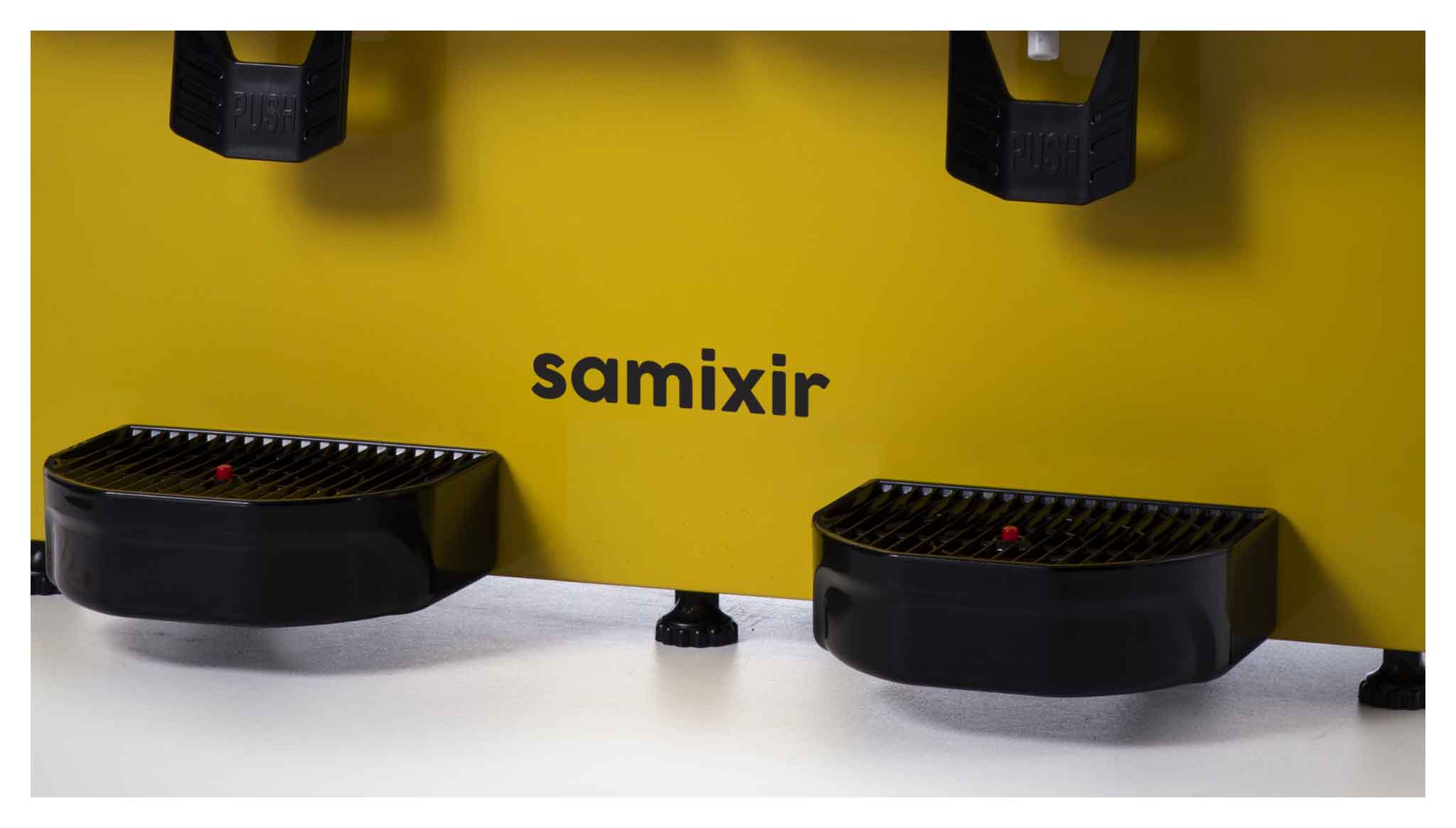

    • Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

    Mixer Models

    MM44.AB (BLACK) MM44.AB (BLACK)
    MM44.AY (YELLOW) MM44.AY (YELLOW)

    Spray Models

    SS44.AB (SİYAH) SS44.AB (SİYAH)
    SS44.AY (YELLOW) SS44.AY (YELLOW)

    Mixer-Spray Models

    SM44.AB (BLACK) SM44.AB (BLACK)
    SM44.AY (YELLOW) SM44.AY (YELLOW)

    Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

    Practical tap system allows easy dispensing of the beverage with single hand.

    Technical Specifications
    Bowl Capacity
    22L + 22L
    Weights & Dimensions
    Machine
    Package
    Weight
    32,7 kg
    35,5 kg
    Width
    695 mm
    735 mm
    Depth
    405 mm*
    420 mm
    Height
    755 mm
    780 mm
    * includes drip tray
    Current
    1,5 A
    Cooling Gas
    R134A / R290
    Temperature Range
    +3 °C — +10 °C
    Energy Consumption
    4,36 kWh/24h
    Power
    290 W
    Cooling Power
    750 W
    Supply Voltage
    220-240 V 50 Hz
    Optional Voltage
    208-220 V 60 Hz
    Optional Voltage
    115 V 60 Hz
