    Panoramic S40

    40 L panoramic spray cold beverage dispenser

    Counter top cold beverage dispenser for cooling and dispensing natural fruit juices without particules and shalgam


    • Counter top cold beverage dispenser; equiped with magnetic spray system, for cooling and dispensing specially fruit juices without particules and shalgam.
      • Beverages cool equally and faster until the last drop, thanks to the large cooling base, it saves energy up to 50% compared classical dispensers.
      • Practical tap system allows easy dispensing of the beverage with single hand.
      • Large diameter tap hose alows constant fluidity and can easily be disassembled and cleansed.
      • It eliminates the risk of leakage to the engine compartment thanks to the magnetic spray system, hence motor is fully protected.
      • Even if the beverage level is low; the appetizing look does not change thanks to the spray system.
      • In order to achieve perfect cleaning and hygiene; all parts which are in contact with the beverage can be easily accessed and quickly cleansed.
      • Polycarbonat bowl is vandal-proof and food grade.
      • The compact body makes the machine suitable for food-service outlets with high daily consumption needs.
      • Not to be used with particulate beverages.
      • Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

      S40.DI (INOX) S40.DI (INOX)
      S40.DB (BLACK) S40.DB (BLACK)
      S40.DY (YELLOW) S40.DY (YELLOW)

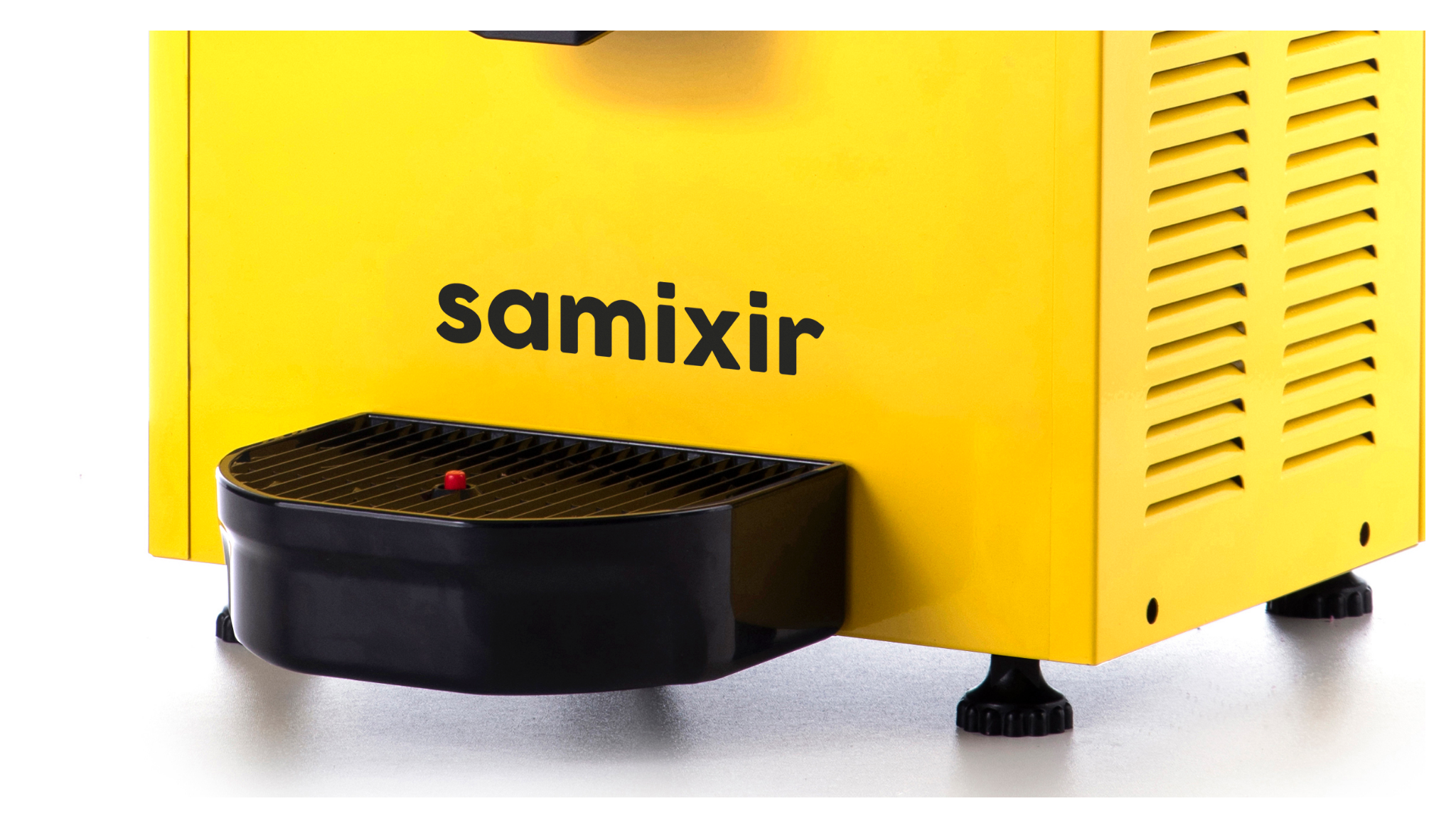

      Water level indicator incorporated into the drip tray serves to indicate the time to empty the tray.

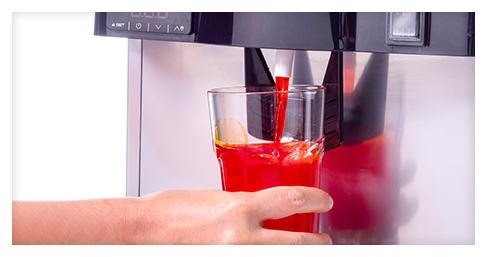

      Practical tap system allows easy dispensing of the beverage with single hand.

      Technical Specifications
      Bowl Capacity
      40 Liter
      Weights & Dimensions
      Machine
      Package
      Weight
      25,8 kg
      27,5 kg
      Width
      450 mm
      490 mm
      Depth
      450 mm*
      480 mm
      Height
      830 mm
      845 mm
      * includes drip tray
      Current
      1,4 A
      Cooling Gas
      R134A / R290
      Temperature Range
      +3 °C — +10 °C
      Energy Consumption
      4,45 kWh/24h
      Power
      285 W
      Cooling Power
      750 W
      Supply Voltage
      220-240 V 50 Hz
      Optional Voltage
      208-220 V 60 Hz
      Optional Voltage
      115 V 60 Hz
